Introduction

The whole machine transportation, can operate directly after connecting the power

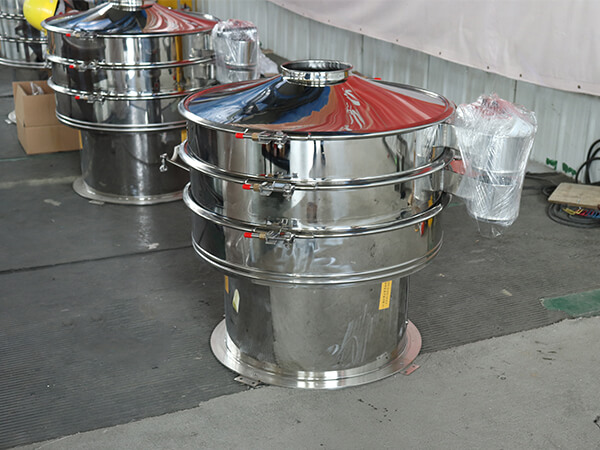

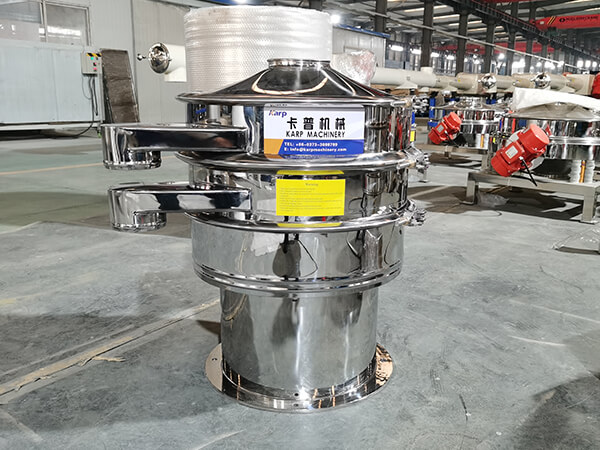

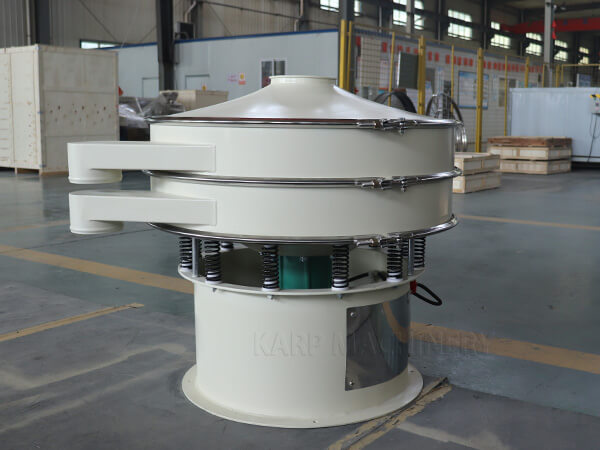

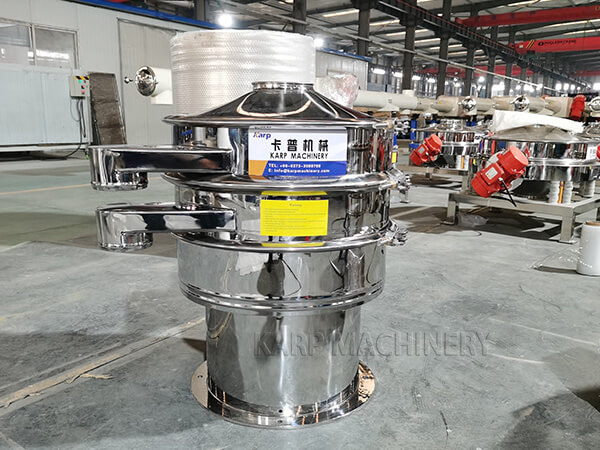

Round Vibrating Screen

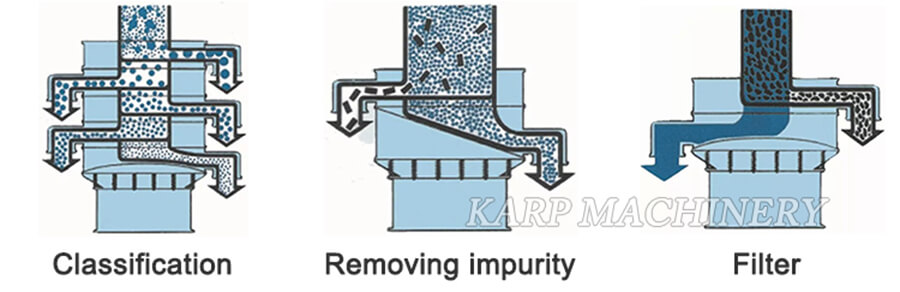

The round vibrating screen used for grading, screening, and filtering raw materials or finished products. The device operates on the principle of vibration, using vibration motors to cause the material to move back and forth on the screen, achieving the purpose of screening and filtering.

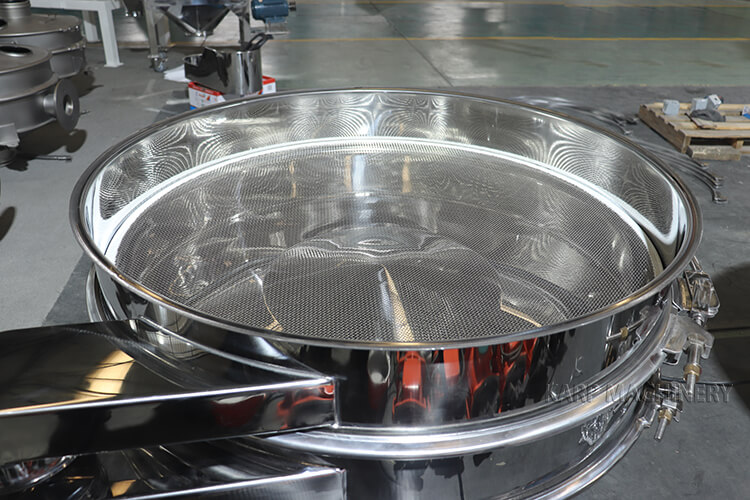

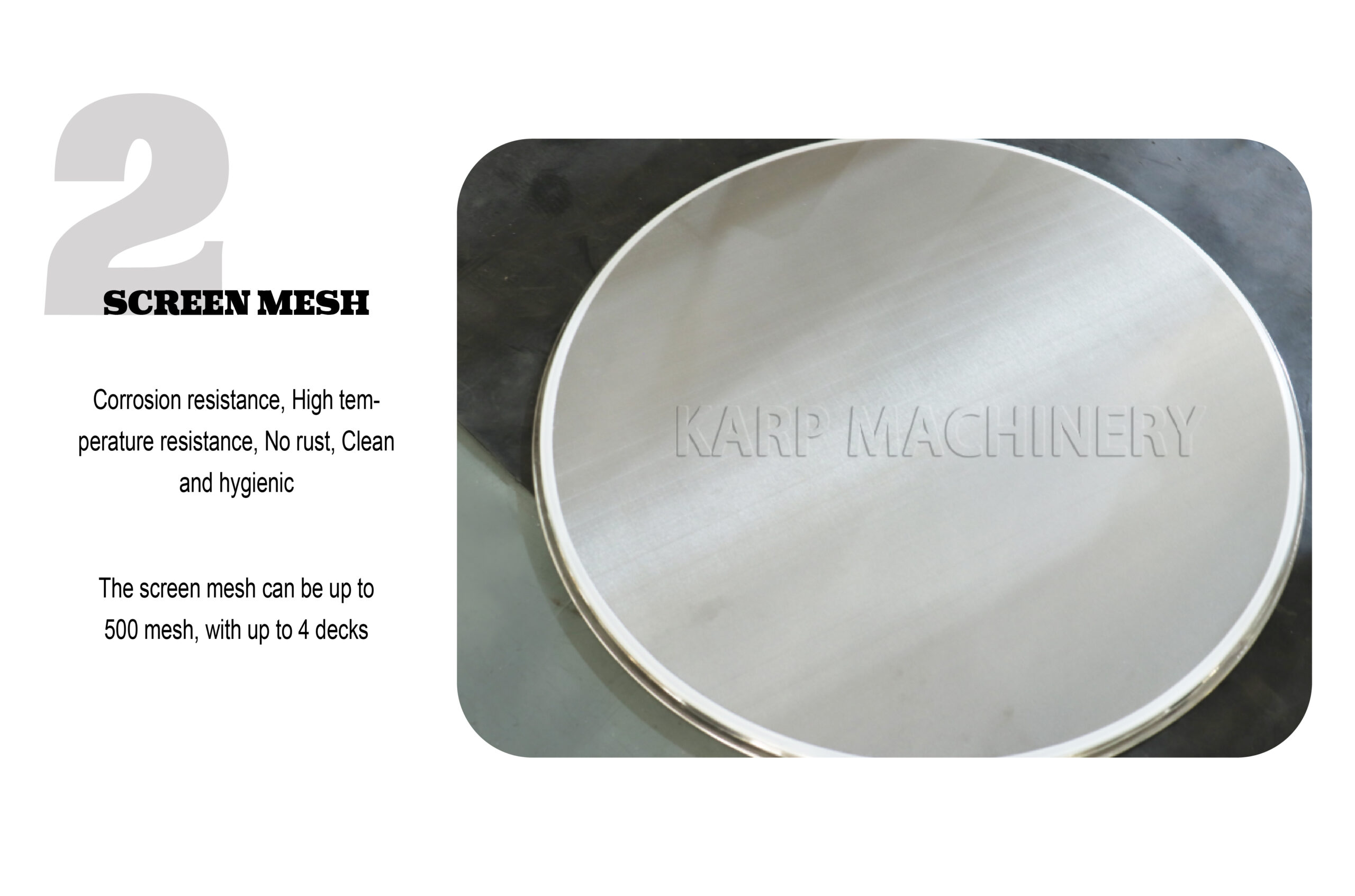

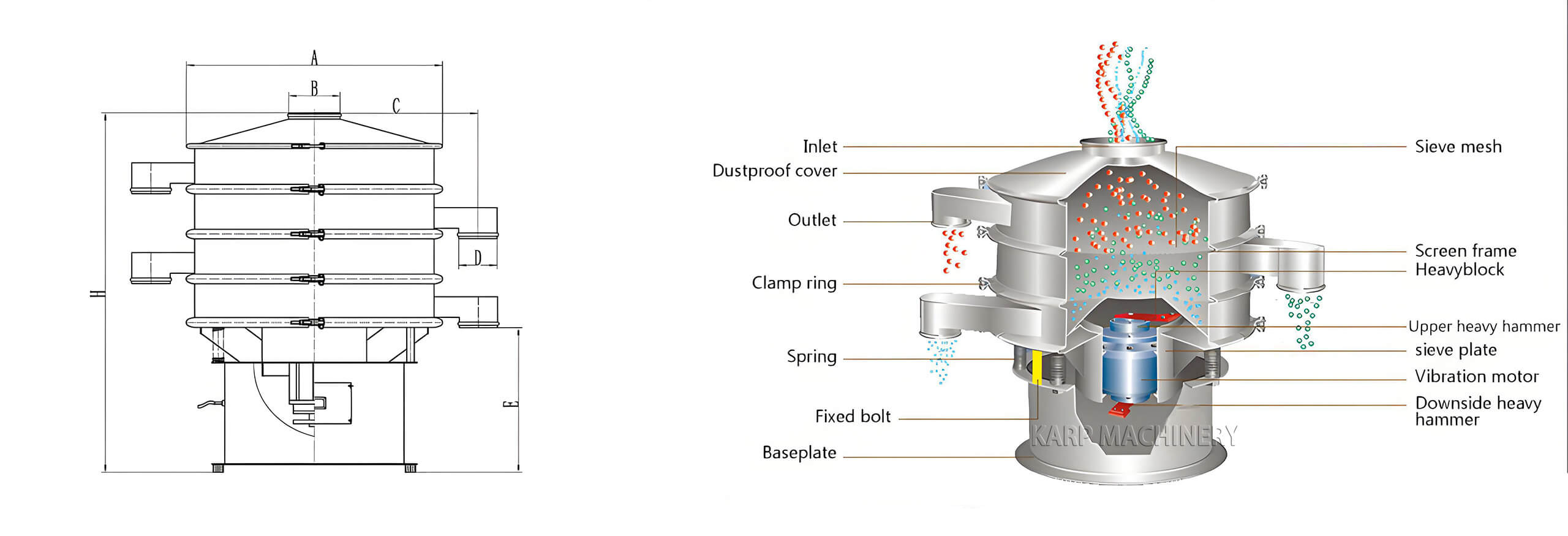

The round vibrating screen is mainly composed of a screening box, a screen mesh, a vibration motor, and shock-absorbing springs. The screening box is usually made of stainless steel and has good corrosion resistance and ease of cleaning. The screen mesh can be made of different materials and have different aperture sizes based on specific requirements and powder characteristics.



Product Details



Round Vibrating Screen

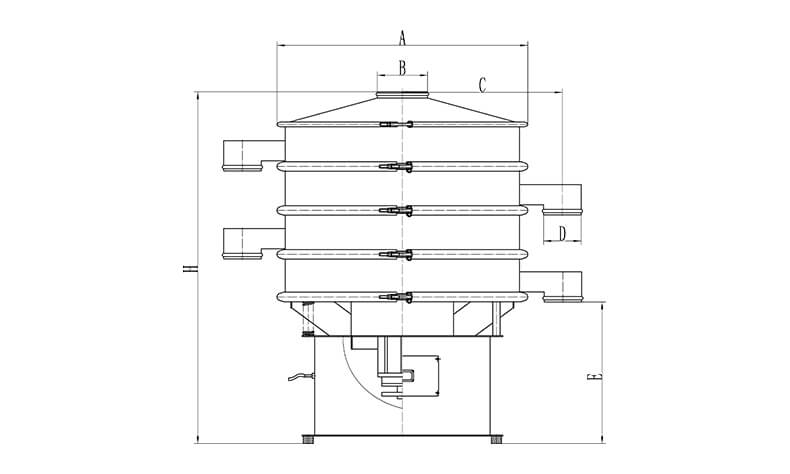

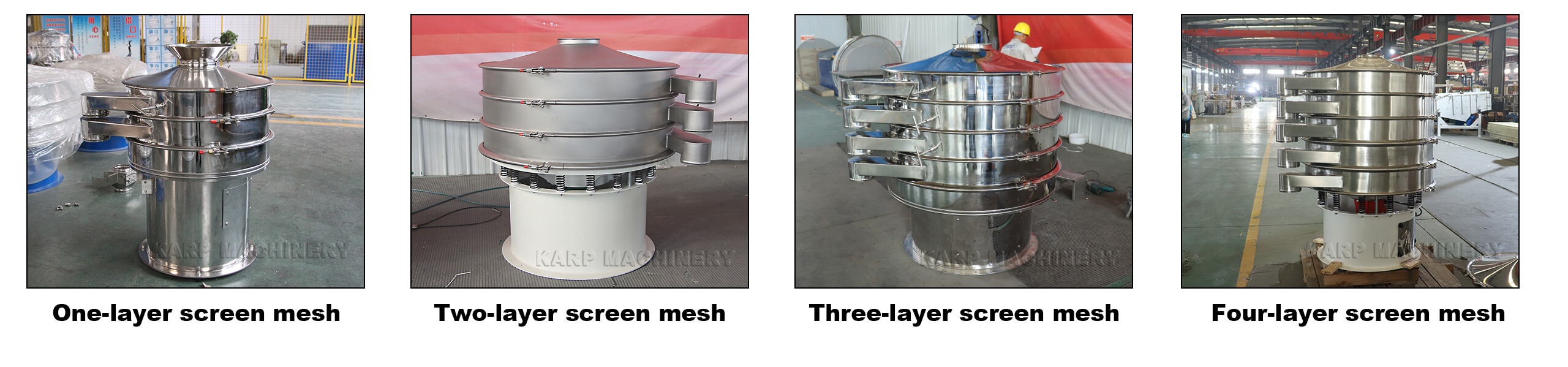

Model A B C D E H
(One-layer）		 H
（Two-layer）		 H
（Three-layer）		 H
（Four-layer）
KP400 400 150 310 100 400 600 700
KP600 600 150 410 100 480 680 780 880
KP800 800 200 530 140 510 930 1070 1220 1360
KP1000 1000 200 640 150 565 1050 1230 1400 1580
KP1200 1200 250 760 160 635 1150 1325 1500 1675
KP1500 1500 250 960 180 685 1300 1500 1700

Applications

The round vibrating screen is widely used in the pharmaceutical, food, chemical, and cosmetic industries, and can be used for preliminary screening of raw materials, fine screening of finished products, and filtration of contaminants. The device has the characteristics of high screening efficiency, high accuracy, low noise, and easy cleaning, which can greatly improve production efficiency and product quality.



Advantages

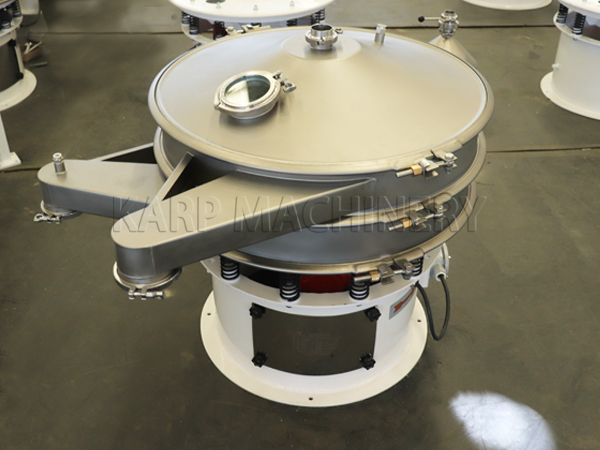

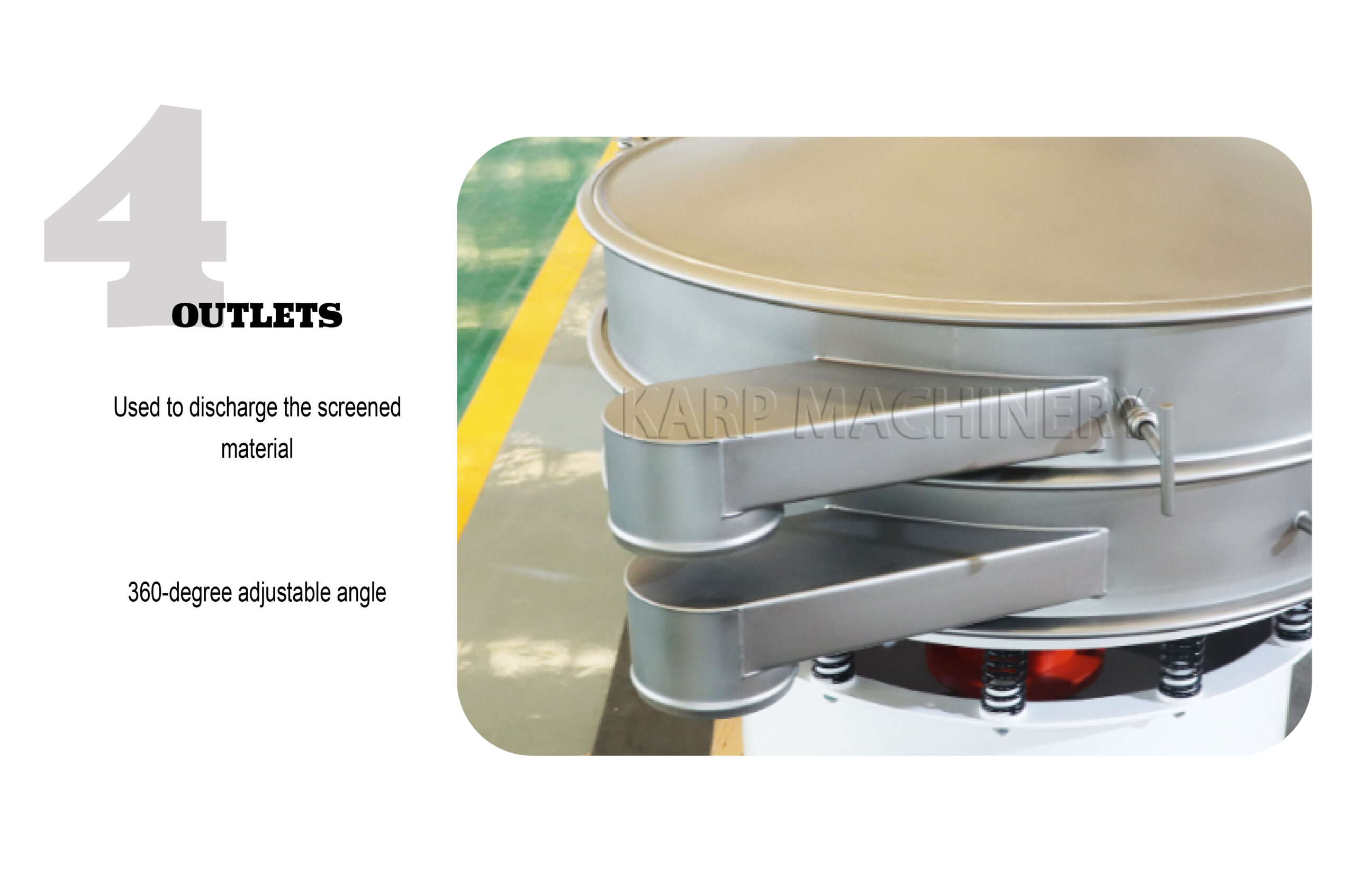

  1. The discharge outlets of the vibrating screen can rotate 360 degrees and support customization.
  2. High screening efficiency: The combination of vibrating screen mesh and vibrating motor makes the screening efficiency extremely high, and the required materials can be quickly screened.
  3. High precision: The use of high-precision screen mesh and vibrating motor can finely screen the powder and meet the requirements of different particle sizes.
  4. Easy to clean: The Powder vibrating sieved stainless steel round vibration screen is made of stainless steel, which has a smooth surface and is easy to clean, meeting GMP standards.
  5.  Low noise: The operation of the vibrating motor has a low sound, which will not cause noise pollution to the working environment.

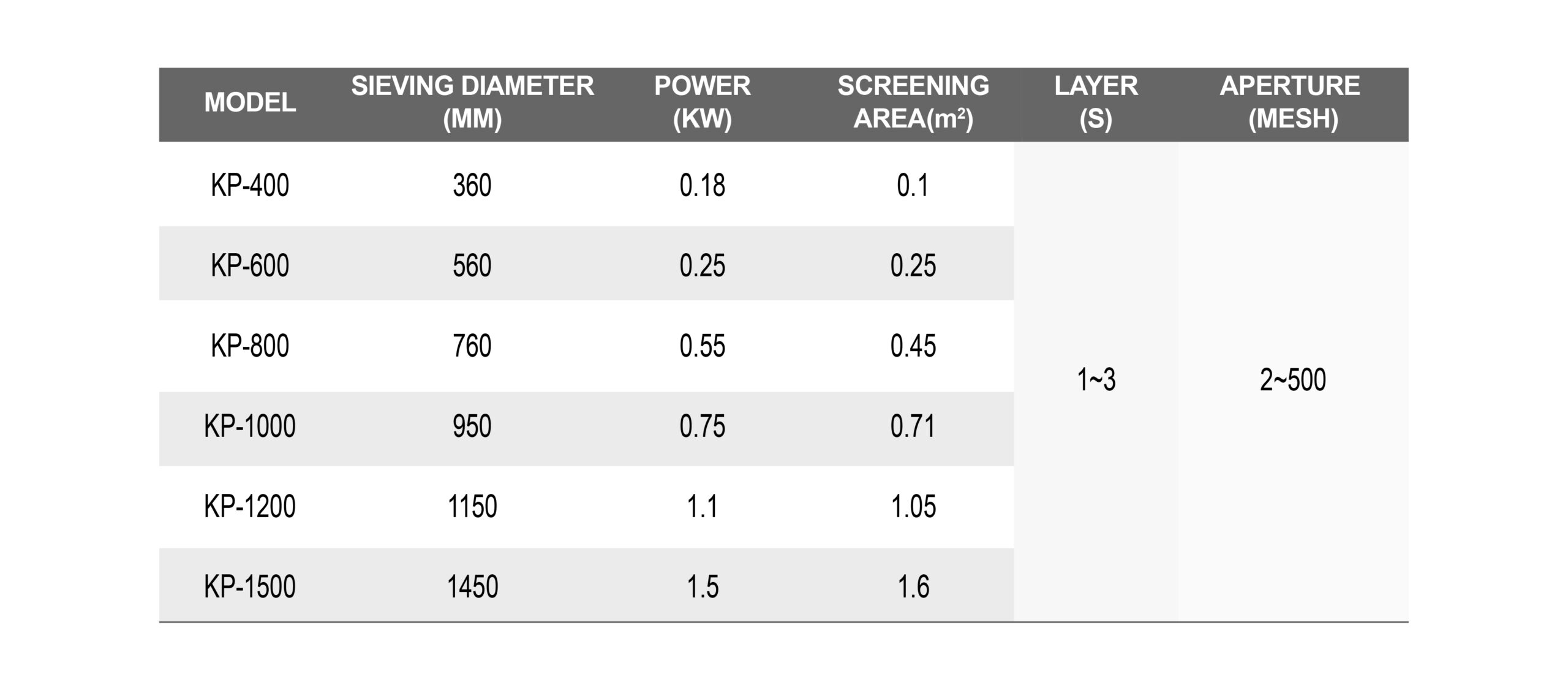

Technical data

Model Power

(KW)

 Diameter of screen surface

(mm)

 layer Mesh size

(mesh)

 Frequency

(rpm)
KP400 0.15 340 1-3



 0-635mesh



 1500
KP600 0.37 540
KP800 0.55 730
KP1000 0.75 950
KP1200 1.1 1150
KP1500 1.5 1450





We need further information before designing

Raw materials name : (       )

Raw materials state : 1. Powder   2. Granule  3. Liquid

Mesh size of screening : (      )

Size distribution ：(      )

Screening capacity : (      )

Inlet port size : (      )  Height above ground : (      )

Outlet port size: (      ) Height above ground : (      )

Voltage : (      ) v      Frequency : (      ) hz

Other special requirements : (          )

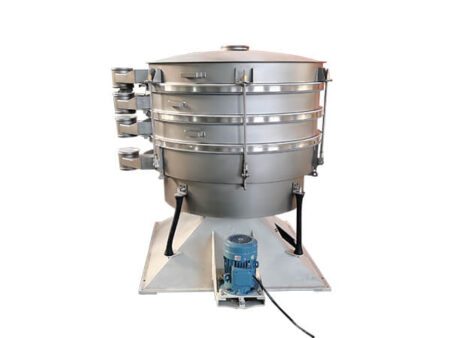

You may also want to see
