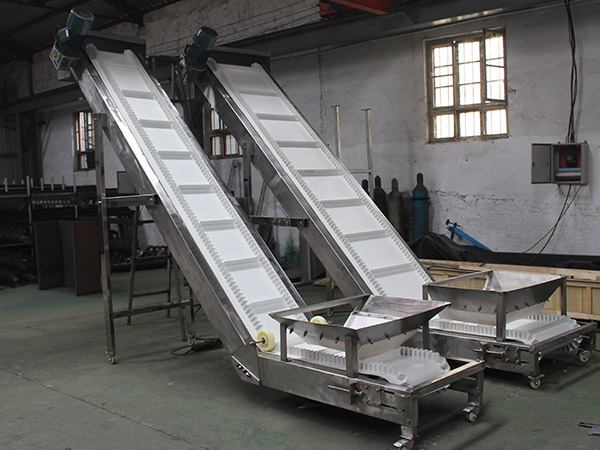

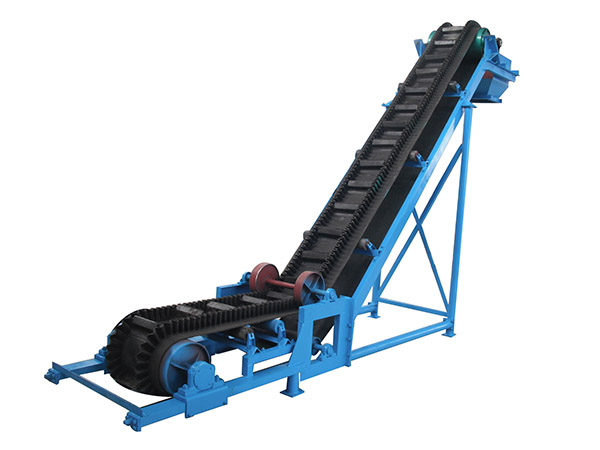

Large Inclination Belt Conveyor

  1. It can convey bulk materials with large angle, which can save a lot of equipment floor space and completely solve the conveying angle that ordinary belt conveyor can't reach.
  2. The mechanized belt conveyor conveys materials and the overall investment cost is low, saving about 20% to 30% of investment costs.
  3. Compared with ordinary belt conveyors, bucket elevators and scraper conveyors, this machine has superior comprehensive technical performance.
  4. The conveying capacity is large, up to 6000m3/h, and the vertical lifting height can reach 500m.

Introduction

DJ large inclination belt conveyor is a new type of continuous conveying equipment, which has a large conveying capacity (1.5 to 2 times higher conveying capacity than other conveyors);  strong versatility (basic parts are the same with those of universal belt type), wide range of application (suitable for conveying gravel, limestone, coal, sand, clay, sintering sand powder, wood chips, grain, etc.. which with a block size of not more than 550mm.)

  1. DJ large inclination belt conveyor is a general-purpose continuous conveying material for bulk materials, which adopts the conveyor with corrugated sidewall and diaphragm. So it is especially suitable for large inclination conveying.
  2. It can be used in industries such as coal, chemical, building materials, metallurgy, electric power, light industry, grain, port, etc.. And convey various bulk material with bulk specific weight of 0.5-2.5t/m3 within the scope of -15 °C ~ +40 °C of working environment humidity.
  3. The large inclination belt conveyor can also set horizontal conveying sections of any length at unit head and unit tail for connection with other conveying equipment.
  4. The conveying angle of belt conveyor with sidewall is 0°~90°.

Features

  1. It can convey bulk materials with large angle, which can save a lot of equipment floor space and completely solve the conveying angle that ordinary belt conveyor can’t reach.
  2. The mechanized belt conveyor conveys materials and the overall investment cost is low, saving about 20% to 30% of investment costs.
  3. Compared with ordinary belt conveyors, bucket elevators and scraper conveyors, this machine has superior comprehensive technical performance.
  4. The conveying capacity is large, up to 6000m3/h, and the vertical lifting height can reach 500m.
  5. When conveying materials vertically, the material size can be up to 400mm.
  6. Smooth transition from horizontal to oblique (or vertical).
  7. Low energy consumption, simple structure and convenient maintenance.
  8. The tape has high strength and long service life.

Working Principle

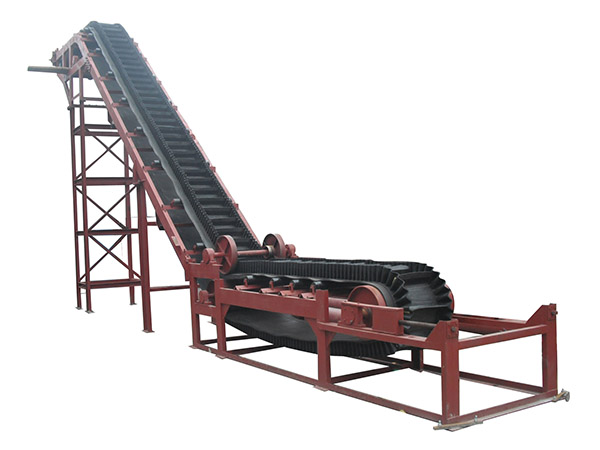

DJ large inclination belt conveyor (sidewall belt conveyor) is constructed by attaching a freely stretchable rubber wave vertical “skirt” on both sides of the flat rubber conveyor belt, and there is a certain strength adhesion between the skirts, which and elasticity of the diaphragm form a squat bucket for the material is continuously conveyed in the bucket. DJ large inclination belt conveyor (sidewall belt conveyor) can be widely used in coal, grain, building materials, chemical, hydropower and metallurgy departments, and convey various bulk material with bulk specific weight of 0.5-2.5t/m3 within the scope of -15 °C ~ +40 °C of working environment humidity.

For materials with special requirements, such as high temperature, materials with acid, alkaline, oil or organic solvents, special sidewall conveyor belts are required.

Technical Specificatin

Belt width B(mm) 400 500 650 800
Height of sidewall (mm) 60 80 80 120 120 160 120 160 200 240
Capacity of partial angle

Q3/h

30° 20 34 46 71 104 120 128 157 195 235
45° 14 26 35 57 83 97 102 127 157 195
60° 10 18 25 40 58 69 72 90 112 142
90° 5 10 13



21 31 37 38 48 60 76










External dimensions

Center height of head wheel

H2/h(MM)



350-100



1100-2000



1300-2000



1300-2000

Center height of tail wheel

H2/h(MM)



330-490



600



600



600-800

Height of belt surface

H2/h(MM)



500-700



760-800



800-850



800-1115

Width of foot margin

B2/h(MM)



580



870



1020



1220

Belt width B(mm) 1000 1200
Height of sidewall (mm) 120 160 200 240 160 200 240 300
Capacity of partial angle

Q3/h

30° 172 216 267 327 275 331 419 466
45° 137 175 216 271 222 267 347 384
60° 96 124 153 197 158 190 253 178
90° 51 66 83 106 85 102 136 149










External dimensions

Center height of head wheel

H2/h(MM)



1400-2000



1600-2000

Center height of tail wheel

H2/h(MM)



600-800



800-1000

Height of belt surface

H2/h(MM)



800-1200



1050-1500

Width of foot margin

B2/h(MM)



1440



1690
