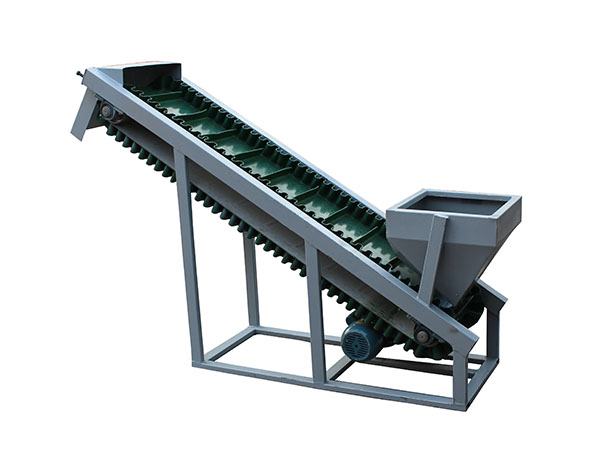

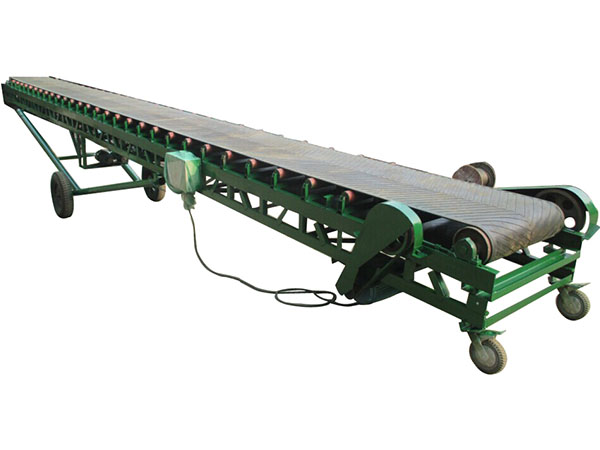

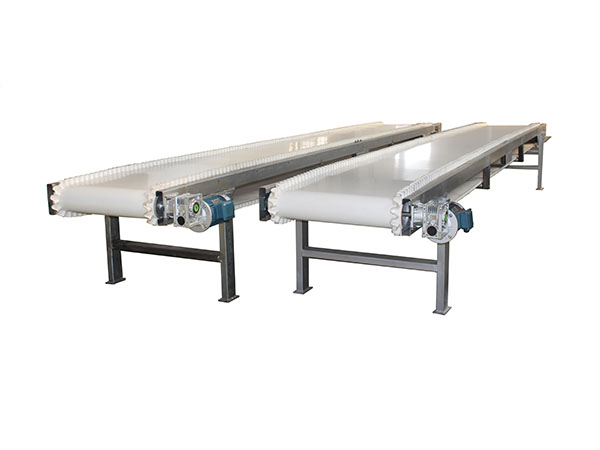

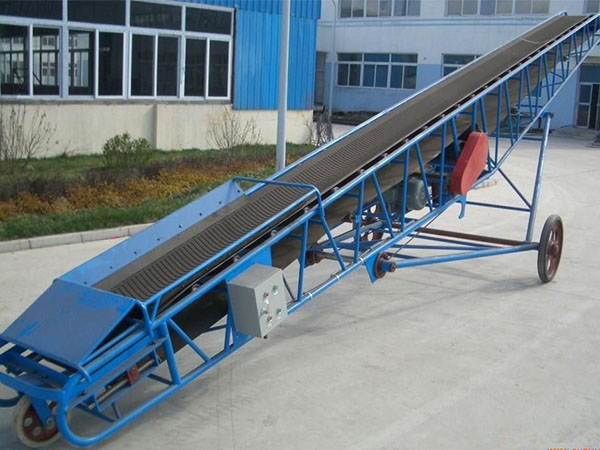

Belt Conveyor

  1. The belt conveyor has smooth conveying, and the material and the conveyor belt have no relative movement, which can avoid damage to the conveyed material.
  2. The belt conveyor is low noisy and suitable for occasions where the working environment is required relatively quiet.
  3. The belt conveyor has simple structure and is easy to maintain. Low energy consumption and low cost of use.

Introduction

Belt conveyor is widely used in metallurgy, coal, transport, water and electricity for conveying of bulk materials or packaged products with advantage of large conveying capacity, simple in structure, convenient maintenance, low cost, strong versatility, etc.. It can convey with one conveyor, multiple conveyors, or form horizontal or inclined conveying system with other conveyors according to the requirements of the conveying process.

The environmental temperature of belt conveyor is from -10 °C to +40 °C, the temperature of the conveying material varies depending on the conveyor belt. The temperature of the conveying material of the ordinary conveyor belt is generally not higher than 60 °C, and the heat-resistant rubber belt can convey higher temperature materials which below 120 °C, when conveying acidic, alkaline, oily materials and materials with organic solvent properties, need to use oil-resistant, acid-resistant rubber belt or plastic belt.

The driving part of the belt conveyor adopts two kinds of motor reducer or electric drum; the brake device adopts roller backstop, belt type backstop, brake, etc.; there are three tension forms, such as spiral tension, vertical tension, car type tension.

Features

  1. The belt conveyor has smooth conveying, and the material and the conveyor belt have no relative movement, which can avoid damage to the conveyed material.
  2. The belt conveyor is low noisy and suitable for occasions where the working environment is required relatively quiet.
  3. The belt conveyor has simple structure and is easy to maintain. Low energy consumption and low cost of use.

Technical data

Main technical parameters
Belt width Belt speed Vm/s
mm 0.5 1.0 1.25 1.6 2.0 2.5 3.15 4(4.5) 5.0

(5.6)

6.5
Conveying capacity IV,M3/H
500 69 87 108 139 174 217
650 127 159 198 254 318 397
800 198 248 310 397 496 620 781
1000 324 405 507 649 811 1014 1278 1822
1200 593 742 951 1188 1486 1972 2377 2674 2971
1400 825 1032 1321 1652 2065 2602 3304 3718 4130
1600 2186 2733 3444 4373 4920 5466 6122
1800 2795 3494 4403 5591 6291 6989 7829 9083
2000 3470 4338 5466 6941 7808 8676 9717 11277
2200 6843 8690 9776 10863 12166 14120
2400 8289 10526 11842 13158 14737 17104
