Flexible Screw Conveyor

  1. The machine is compact in design, durable and has excellent performance.
  2. Unique spiral spring structure, low noise and high productivity.
  3. The whole machine is light in weight, small in floor space and convenient for mobile installation.
  4. It is a multifunctional machine, and it can suck and load food grain, and convey granular fertilizer, feed, chemical products and other non-corrosive granular materials.

Introduction

Flexible screw conveyor is a new design machine developed by our company in combination with national conditions. This product is a small equipment specially designed for transportation, loading and storage of grain, fertilizer, chemical raw materials, stone, sand and other bulk powders. It has many advantages such as Small, light weight, easy to move, high efficiency, low breakage rate, wide use, safe, reliable ad so on. It is suitable for farms, warehouses, farms, feed mills, food plants, chemical plants, mining industry, etc.

Working Principle

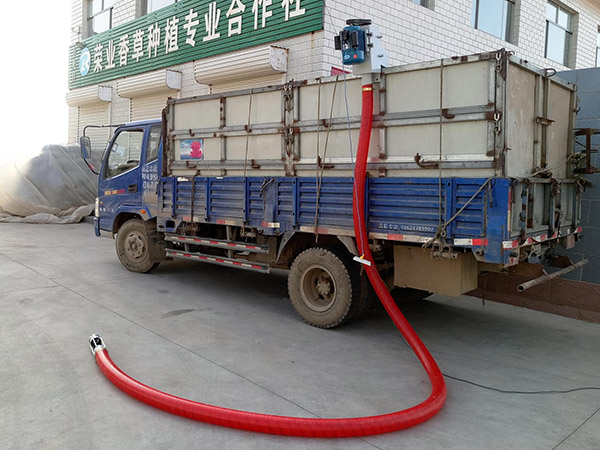

The motor shaft and the auger spring are linked by a screw. When the motor started to move, the motor drives the auger spring to rotate, and the grain at the collecting port rises along the spiral rising angle of the spring to reach the discharge port under the action of the rotating spring.

Structure

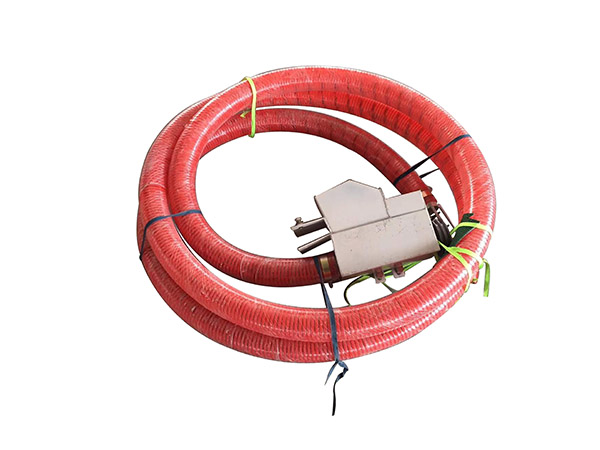

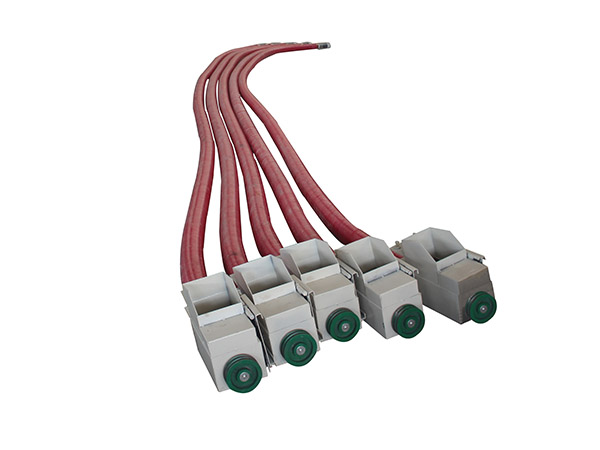

The Flexible screw conveyor is composed of five parts: a flexible outer pipe, a auger spring, The head and tail of the machine, and motor.

Flexible outer pipe: The spiral tube is made of high-quality beef tendon material, and the tendon tube has the characteristics of wear resistance and cold resistance.

Auger spring: Made of manganese steel, the spiral blade adopts shaftless structure, which is convenient for rotating of the auger spring.

The head and tail: The user-friendly design makes the machine convenient and fast.

Motor: The motor adopts 220V single-phase electric / 380V three-term electric, power 3-4kw.

Feature

  1. The machine is compact in design, durable and has excellent performance.
  2. Unique spiral spring structure, low noise and high productivity.
  3. The whole machine is light in weight, small in floor space and convenient for mobile installation.
  4. It is a multifunctional machine, and it can suck and load food grain, and convey granular fertilizer, feed, chemical products and other non-corrosive granular materials.

Technical Specification

Model No. Length (Meters) Pipe diameter (mm) Loading Motor (kw) Conveying height (m)
Capacity(t/h)
XLJ-100 6 100 4-6 1.5-4.5 3-4
XLJ-100 8 100 4-6 1.5-4.5 3-4
XLJ-100 10 100 4-6 1.5-4.5 3-4
XLJ-100 12 100 4-6 1.5-4.5 3-4
XLJ-120 6 120 6-10 1.5-4.5 3-4
XLJ-120 8 120 6-10 1.5-4.5 3-4
XLJ-120 10 120 6-10 1.5-4.5 3-4
XLJ-120 12 120 6-10 1.5-4.5 3-4
XLJ-160 6 160 10-20 1.5-5.5 3-4
XLJ-160 8 160 10-20 1.5-7.5 3-4
XLJ-160 10 160 10-20 1.5-7.5 3-4
XLJ-160 12 160 10-20 1.5-7.5 3-4
