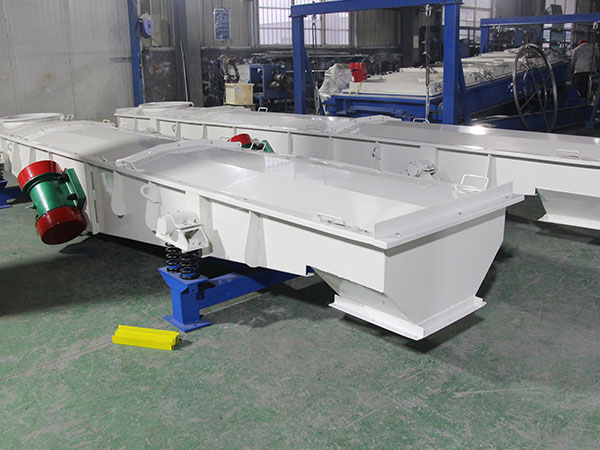

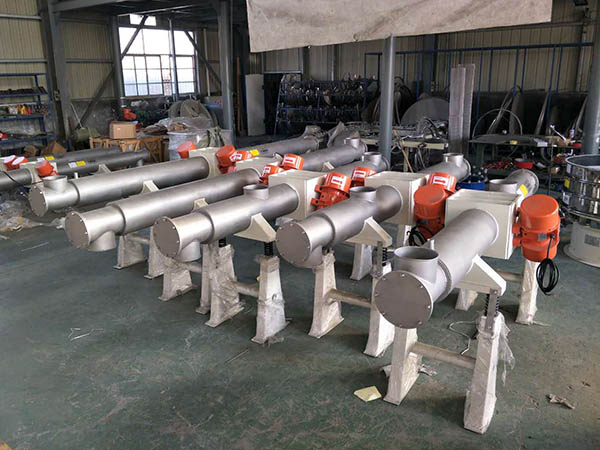

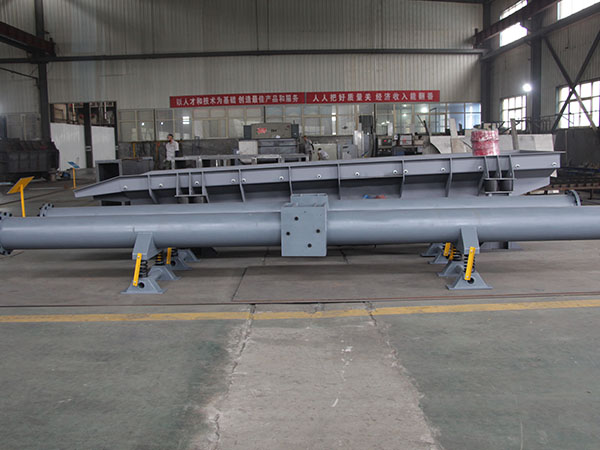

Vibration Feeder

  1. Small size, light weight, reliable operation, convenient installation, and convenient maintenance.
  2. Convenient adjustment and stable feeding
  3. Low noise, low power consumption, good performance of the regulator and nonexistence of material clashing circumstance

Introduction:

GZG series motor vibration feeder are widely used in mining, metallurgy, coal, thermal power, fire resistance, glass, building materials, electric power, chemical, machinery, light industry, food and other industries. It is suitable for uniformly and continuously feeding the block, granular and powder materials from the storage bin or the funnel to the receiving device. The motor vibration feeder can feed material to belt conveyor, vibrating conveyor, bucket elevator, crusher, vibrating screen, pulverizer, etc., and can be used in the process of automatic matching, quantitative packaging and automatic control. To achieve automation of flow operations.

Working Principle

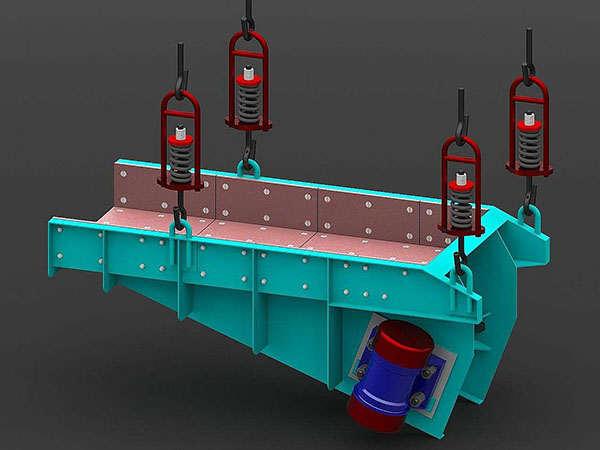

The feeding process of GZG series motor vibrating feeder is realized by using a special vibrating motor to drive the feeding trough to make a cyclic linear reciprocating vibration in the oblique direction. When the vertical component of the acceleration of the vibration of the feed tank is greater than the acceleration of gravity, the material in the tank will be thrown up and jump forward according to the trajectory of the parabola, throwing and falling within 1/50 seconds, due to the continuous vibration of the vibration motor The vibration, the feed trough continuously vibrates, and the material in the trough continuously jumps forward to achieve the feeding purpose.

Features / Advantages

  1. Small size, light weight, reliable operation, convenient installation, and convenient maintenance.
  2. Convenient adjustment and stable feeding
  3. Low noise, low power consumption, good performance of the regulator and nonexistence of material clashing circumstance

Technical Specification

Model Capacity(t/h) Feeding trough size(mm) Working type Particle size

(mm)

Weight

(kg)

GZG30-4 15 300×1000×160



















Continue

120 110
GZG40-4 30 400×1200×160 155
GZG50-4 50 500×1200×160 190
GZG60-4 80 600×1800×180 150 410
GZG70-4 100 700×1800×200 180 440
GZG80-4 200 800×2000×225 200 640
GZG90-4 300 900×1500×300 250 730
GZG110-4 400 1100×1500×300 900
GZG130-4 500 1300×1500×400 350 1000
GZG70-6 80 700×1800×200 150 440
GZG80-6 160 800×2000×225 180 670
GZG90-6 240 900×1500×300 240 740
GZG110-6 320 1100×1500×300 940
GZG130-6 500 1300×1500×400 400 1040
GZG150-6 780 1500×1800×560 2000
GZG180-6 1000 1800×1800×500 600 2590
GZG200-6 1300 2000×2000×500 800 3700
