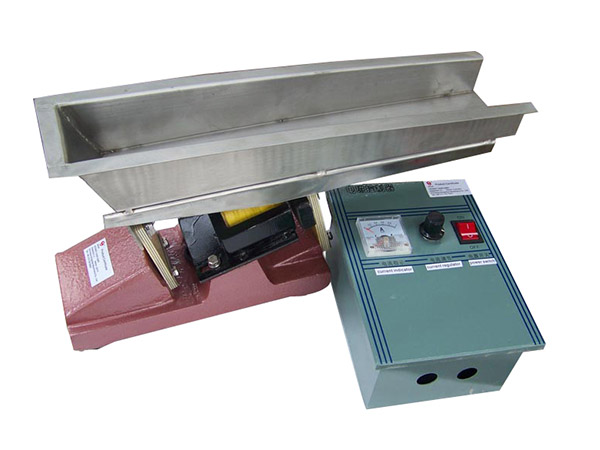

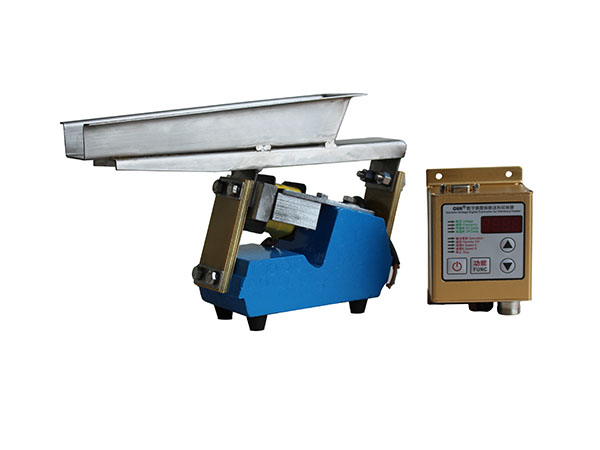

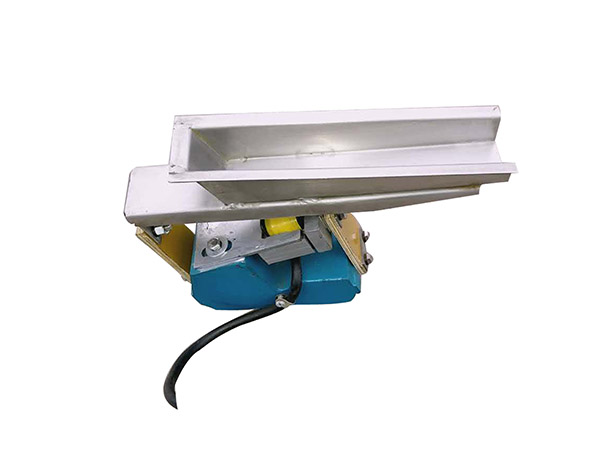

Mini electromagnetic vibration feeder

  1. small size, light weight, simple structure, easy installation and low operating cost;
  2. Due to the mechanical vibration resonance principle, the power consumption is small;
  3. Using thyristor half-wave rectification power supply, the feed amount can be adjusted steplessly during use;
  4. The feeder continuously throws the material

Introduction

Mini electromagnetic vibration feeder is widely used in various industries such as light industry, chemical industry, grain, food, grinding, etc. It is used in the process of feeding, batching and quantitative automatic packaging of powder and granular materials, and can realize centralized control and automatic control in the production process.

Feature:

The miniature electromagnetic vibrating feeder is a new type of feeding equipment, which has the following characteristics compared with other feeding equipment:

  1. small size, light weight, simple structure, easy installation and low operating cost;
  2. Due to the mechanical vibration resonance principle, the power consumption is small;
  3. Using thyristor half-wave rectification power supply, the feed amount can be adjusted steplessly during use;
  4. The feeder continuously throws the material during the feeding process, so the wear of the feed tank is small.

Working Principle

GZV miniature electromagnetic vibrating feeder adopts linear trough reciprocating type, which is composed of trough, electromagnetic vibrator and shock absorber. It can screen materials without orientation. Its electrical control uses a half-wave rectification circuit, which is completely equipped with no rotating parts and feeding on the principle of micro-throw motion. The feeding process is completely automatic, the trough wear is small, the mechanical maintenance is convenient, and the material with high temperature wear and corrosiveness can be transported at the same time. The control box allows manual and automatic adjustment.

Technical Specificatin

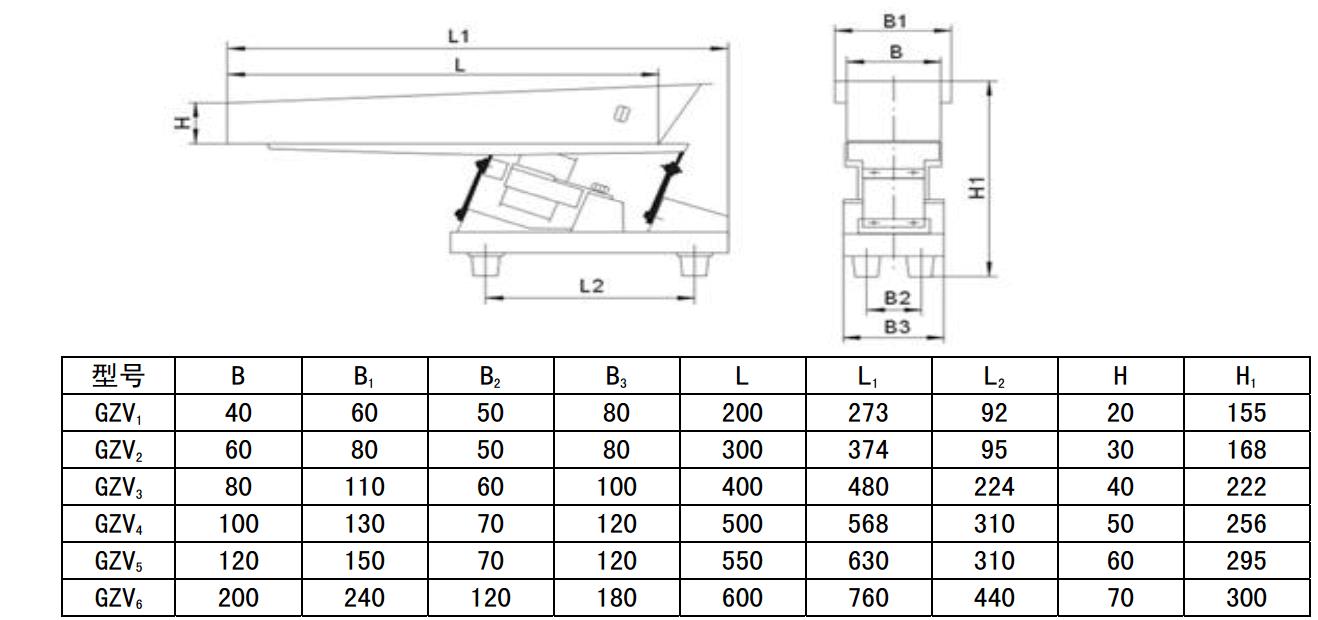

Model Selection

Model GZV 1 GZV 2 GZV 3 GZV 4 GZV 5 GZV 6
Capacity(t/h) 0.1 0.5 1 2 4 6
Double Amplitude 1.5 1.5 1.5 1.5 1.5 1.5
Frequency(r/m) 3000 3000 3000 3000 3000 3000
Power(W) 5 8 20 25 30 50
Weight(kg) 4 7 12 18 27 45
Voltage(V) 220 220 220 220 220 220
