We are glad to introduce a newly engineered integrated system designed for a customer in the United States. It combines two bulk bag unloading stations with screw conveyors for efficient powder handling.

This customized solution is specifically developed for conveying limestone powder with a particle size ranging from 5 to 50 microns. The system transfers material to a height of 10 feet (3.05 meters). And it delivers powder to downstream equipment with high and low level control requirements.

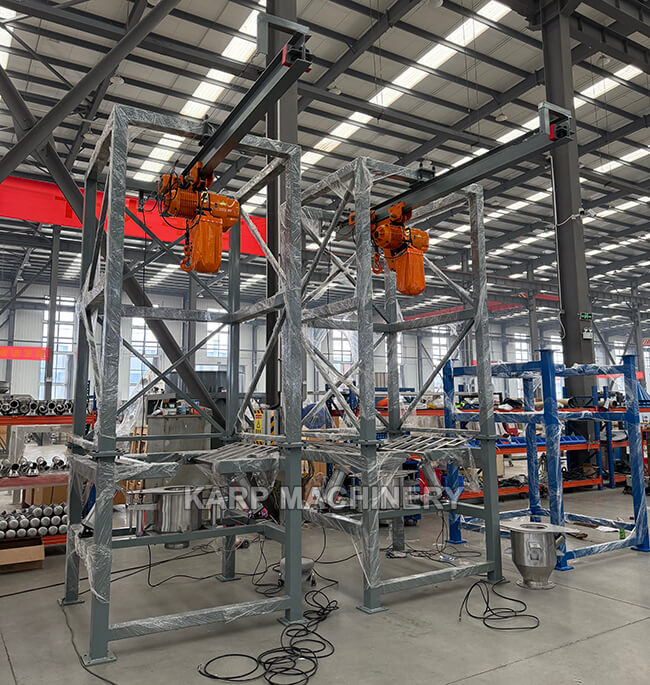

One of the key challenges of this project was the limited installation space. With a ceiling height of only 13 feet (3.95 meters), standard bulk bag unloading equipment could not meet the requirements. Our engineering team designed a compact, low-profile bulk bag unloading system. It’s perfect to fit within the height restriction while maintaining safe and efficient operation.

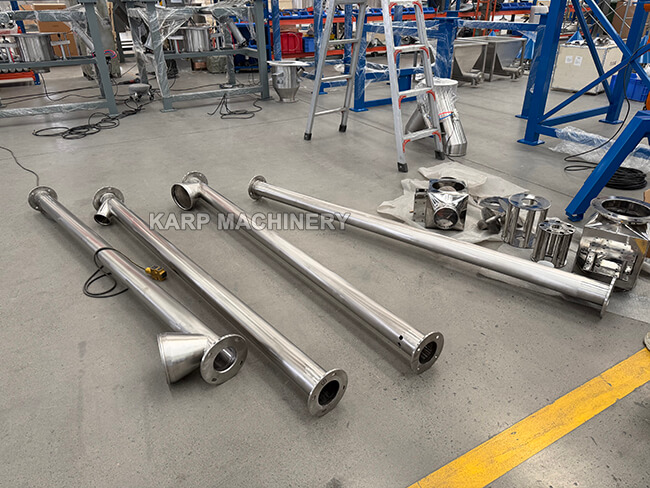

The screw conveyor is beneath the discharging stations and features adjustable conveying capacity from 20 to 60 kg/h. It can fully integrated with the customer’s PLC system. And it allows automatic start and stop based on high and low material level signals from the receiving equipment.

This project demonstrates our capability to provide tailored bulk material handling solutions, even under strict spatial and process constraints. If you have similar requirements, feel free to contact us for a customized design solution.
